0.9.10 Release

The current stable release is 0.9.10, released on 2023-07-31.

New Features

Major New Features

  • Added two (2) new CPU bays for a total of four (4).
  • Heat set insert support changed to M3 x 5mm (OD) x 4mm (L) (Voron-style).
  • Front base support for toggle switches.
  • Rear main body with two (2) external fans replaced by a four (4) interal mounts.
  • "Full HSI" case option with most fasteners mating with an insert.

Additional Improvements

  • Improved: Crossbar version added with HSI support, better zip tie anchors.
  • Improved: Long lower bay trays now mount sideways, one additional tray available.
  • Improved: New bottom panel template and panel options.
  • Added: Additional zip tie anchors, particularly to the front main body.
  • Improved: CPU tray guides take up significantly less room.
  • New: Support for 12mm and 12.5mm toggle switches.
  • New: MCU trays with mounts for dual MCUs.
  • New: Slide-out storage for the CPU bay.
  • Improved: Rear panel template now provides support for the lid.
  • Improved: Display panel template now fits betters and prints with less material.

New Hardware Support

Hardware Mount Location(s) Notes
Mean Well SE-450 PSU Tray
Mean Well LRS-450 PSU Tray
Mean Well LRS-600 PSU Tray Fit test needed.
Mean Well LRS-25-5 Lower bay tray Contributed by Mr Meh.
Creality 2.X MCUs MCU Tray Contributed by Mr Meh.
FYSETC Spider MCU Tray Contributed by Killajoedotcom.
MKS Monster8 MCU Tray Fit test needed.
MKS Skipr MCU Tray Fit test needed.
BIGTREETECH 5" Pi TFT Display Panel Contributed by MaffooClock.
BIGTREETECH SKR Pico MCU Tray
Omron puck-style relays Lower bay tray Compatible with most clones.
BIGTREETECH U2C CAN adapter Lower bay tray Contributed by edgy.
50mm x 12mm fans Any panel 50x10 and 50x15 pending fit tests.

Fixes

  • Issue #91: Display template is faulty
  • Issue #81: Lower bay tray standoffs need a fillet
  • Issue #59: Micro Fit 3 pinouts for rear panels are missing
  • Issue #94: Add a power switch cover to prevent accidental bumping
  • Issue #114: Lower bay standoffs should be tapered
  • Issue #111: Videos should not auto-download
  • Issue #102: Template should have a version code
  • Issue #62: Panel mounted connectors template is out of date

Documentation & Repository

  • Documentation site
    • Added contribution information.
    • Cleaned up wording on introductory pages.
    • All fixed BOM parts have example links.
    • Added a simple upgrading guide and templates page.
    • Simplified HSI assembly section.
  • Repository
    • Some file names have additional qualifiers where multiple variations now exist, e.g. "stock" vs. "HSI".
    • Fixed a number of stable files that were never copied or updated from unstable.

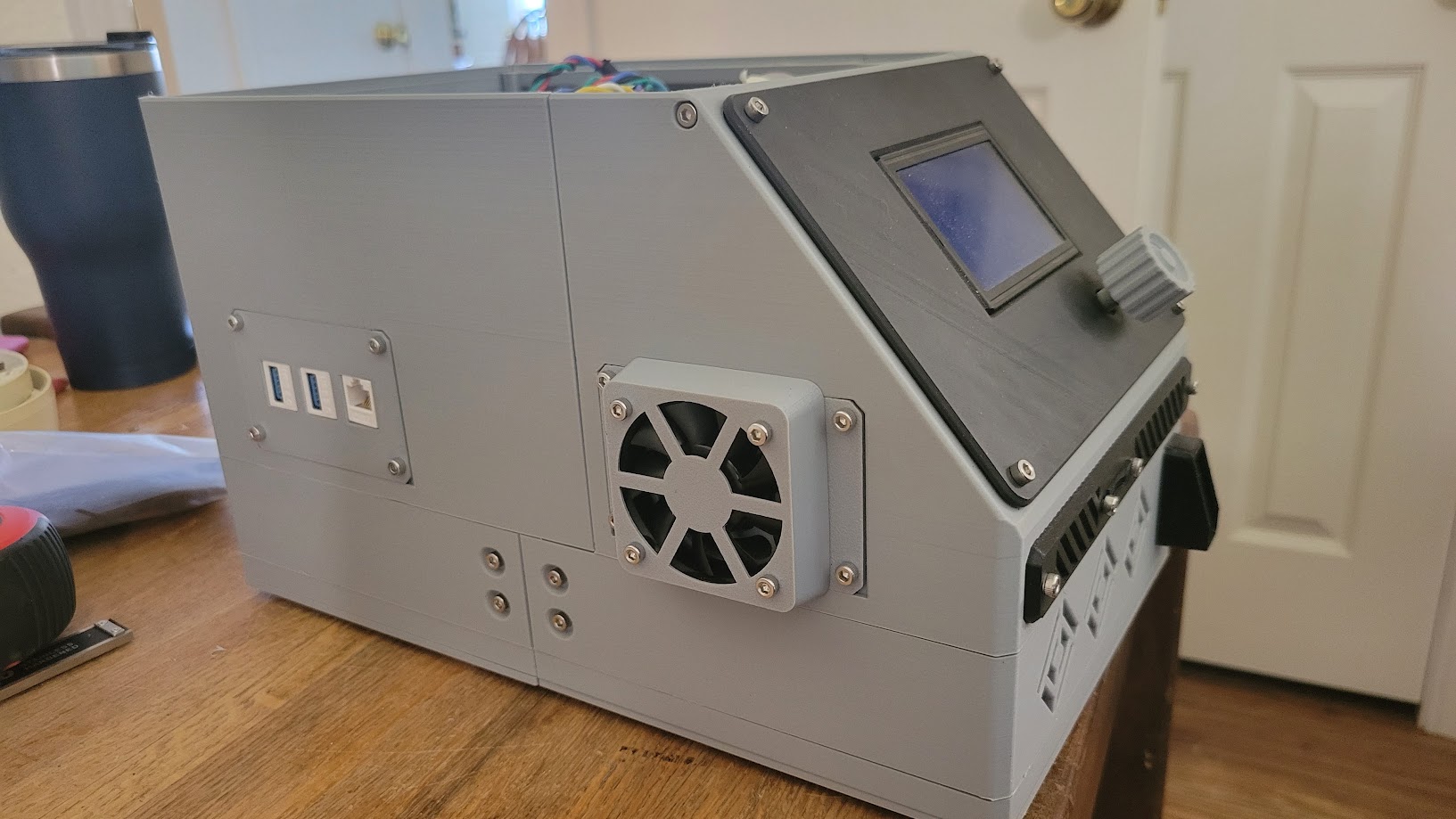

An OmniBox with external 50mm fan and keystone jack extensions.

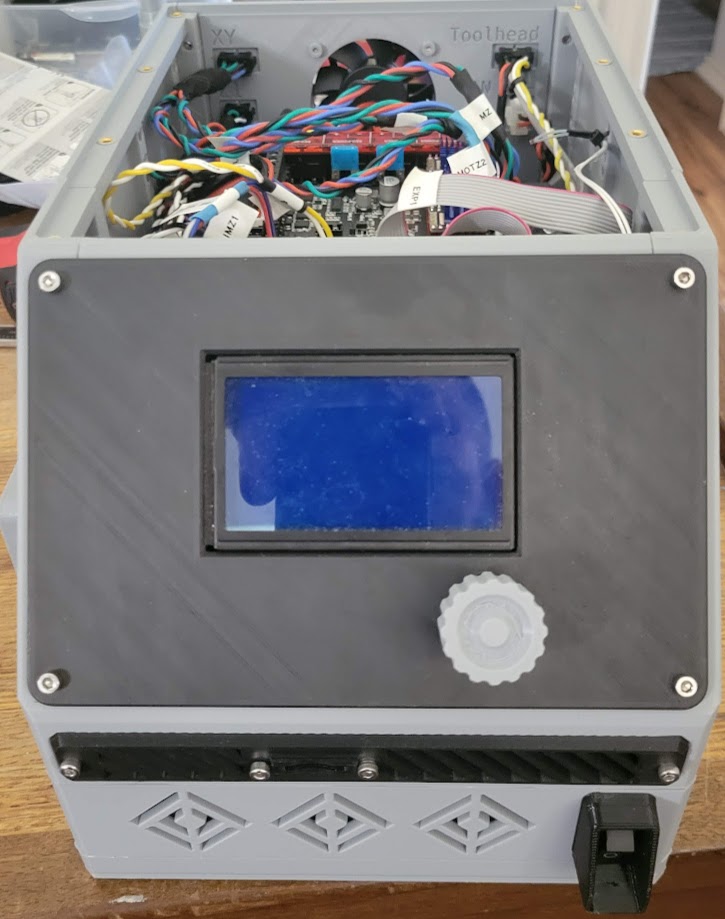

Front view of a completed OmniBox with power switch cover and rear-mounted 60mm fan.

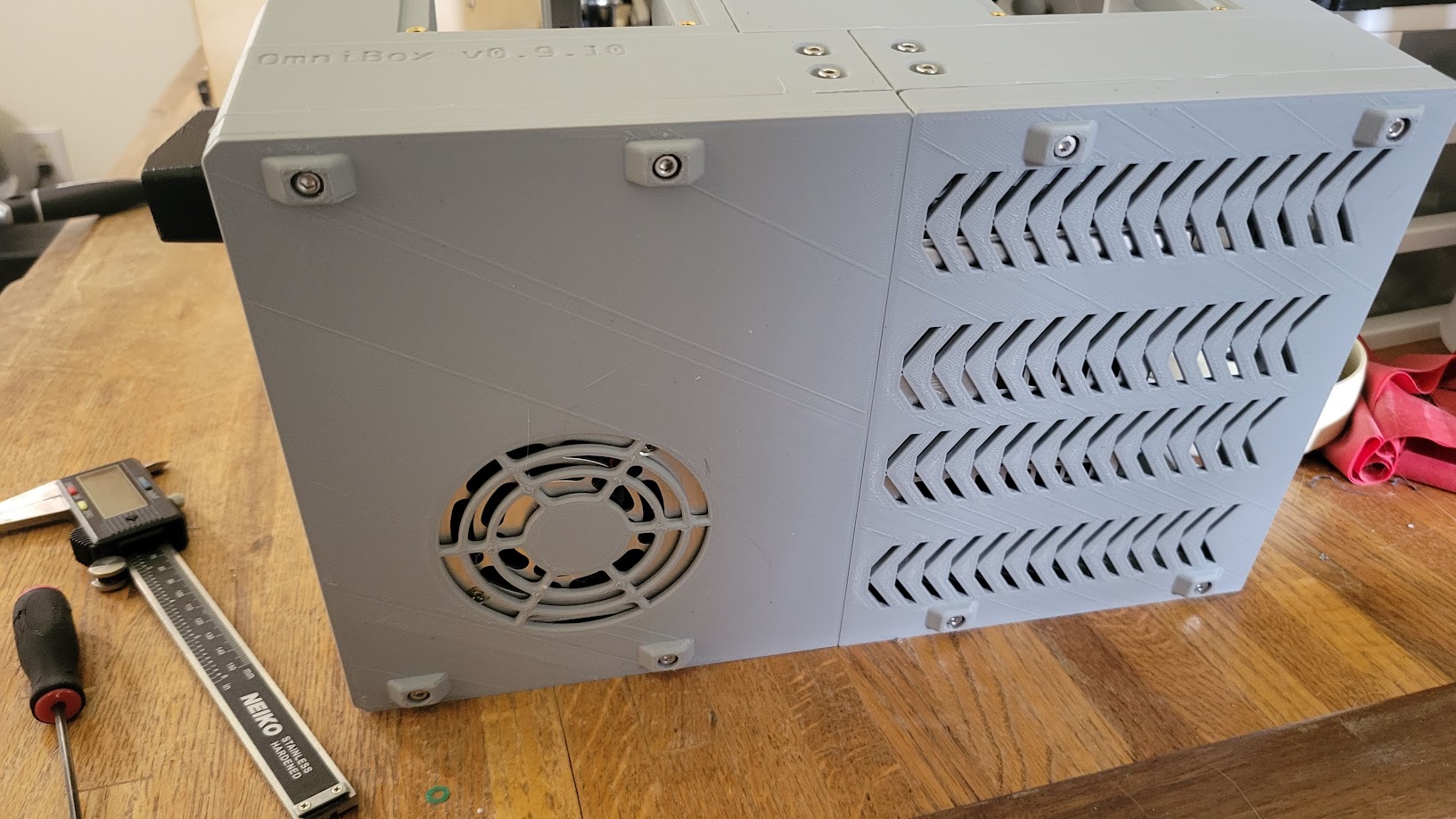

The new Mean Well bottom panel allows the PSU to exhaust directly out of the case.

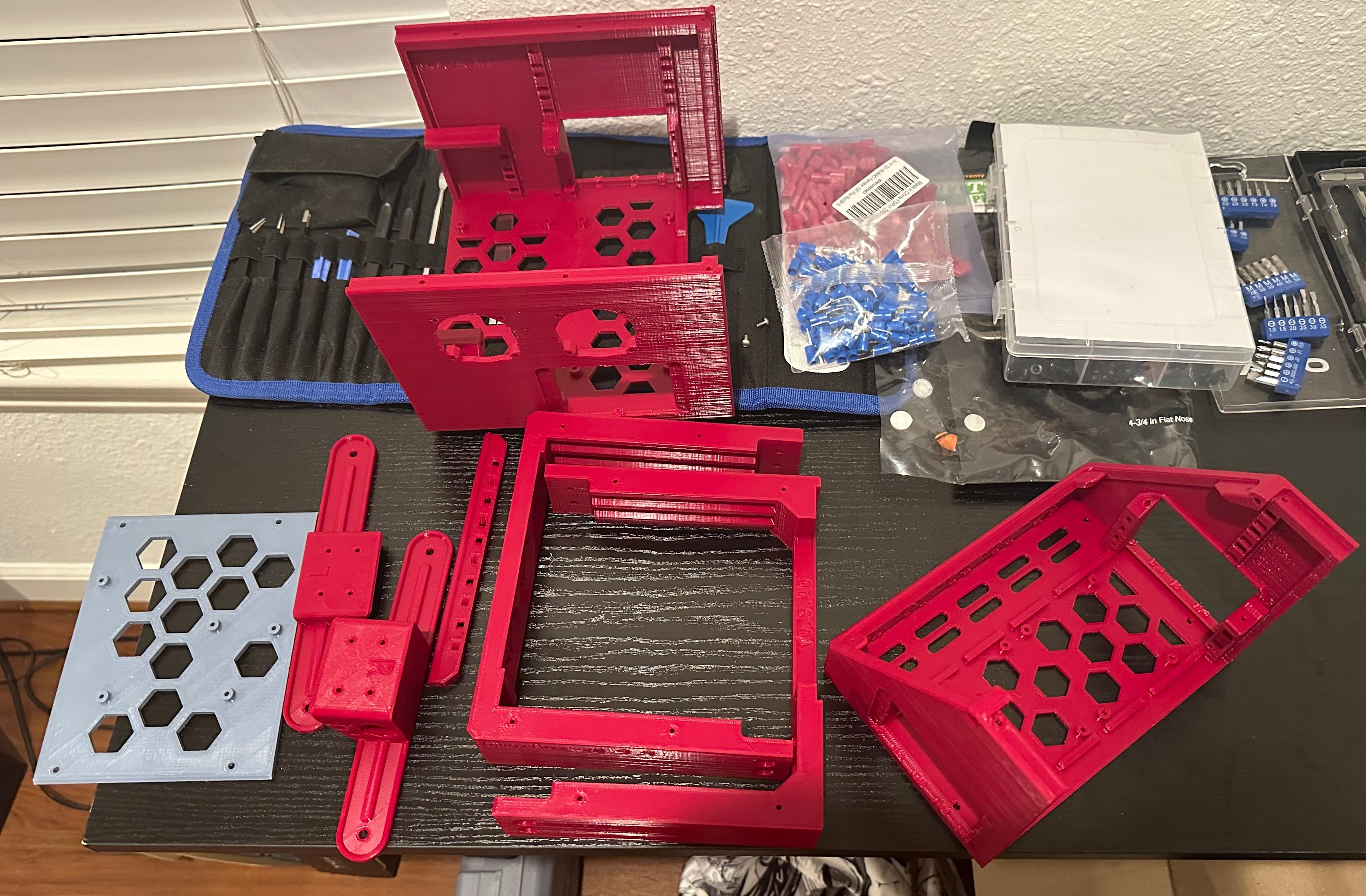

Everything but the panels, ready to assemble the Core case.
Photo courtesy matrixsenpai.

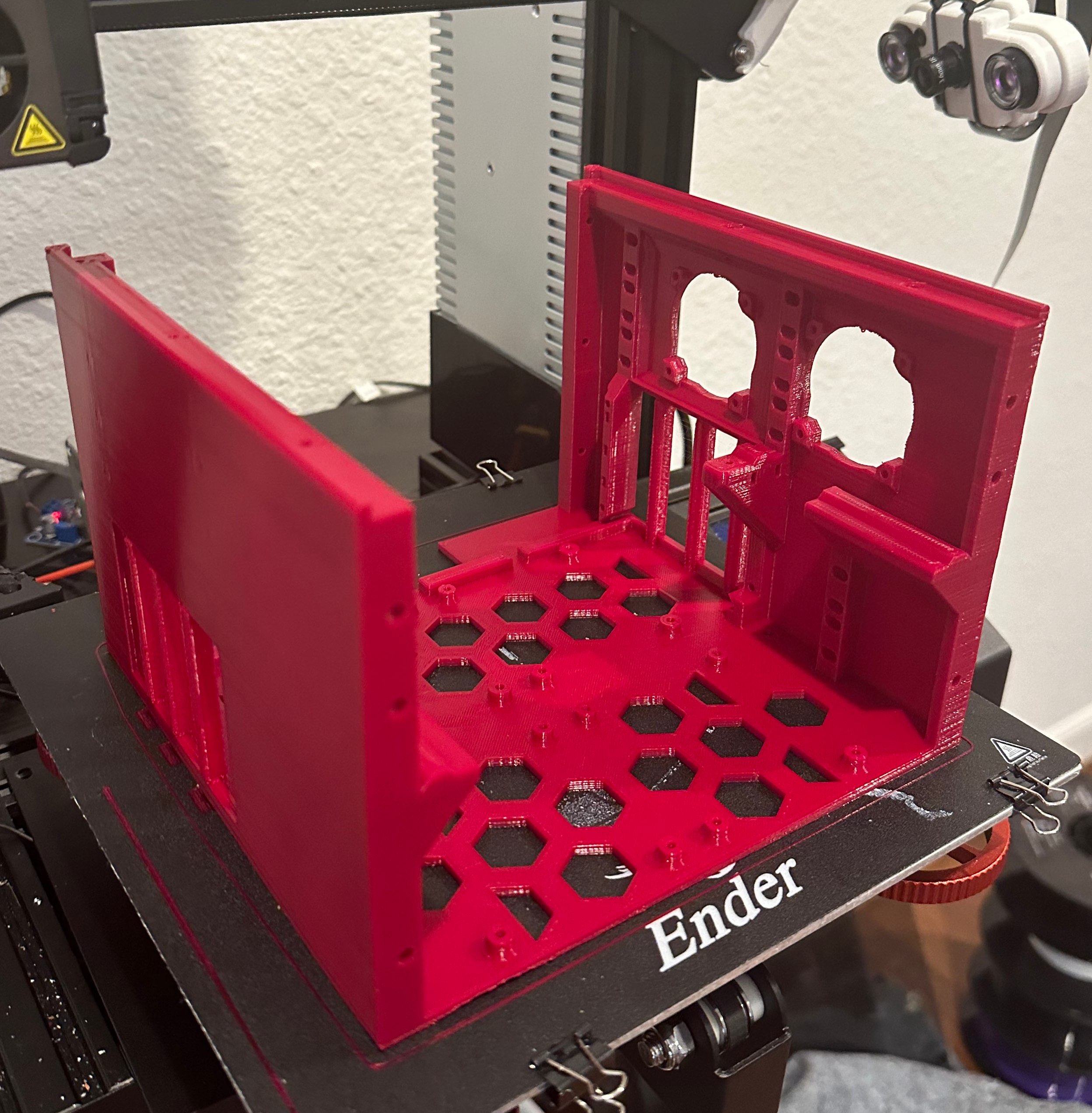

A freshly-printed PETG Rear Main Body.
Photo courtesy matrixsenpai.
