Panel Mounts

Using Panel Mounts

Connector panel mounts will typically be on the rear panel and connect with the printer. Extensions can be mounted on the front or rear and are typically for SD Cards and USB ports.

Front Panels

The front panel is long and slim and can be used for mounting small hardware ports. The most common examples are SD Card extensions and USB extensions. You can find these files in the Panels/Front Panel git folder.

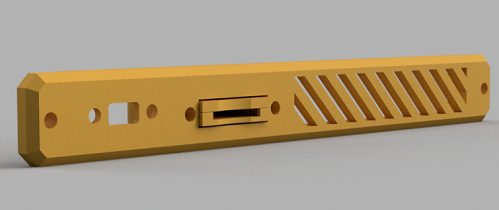

The example below has a Micro SD extension and USB-C extension with slat-style vents.

front panel example

Rear Panels

Rear Panels are the most customizable part of OmniBox. They can mount connectors and fans and modified to suit each end user. There are also a number of generic templates available in the Panels/Rear Panel git folder.

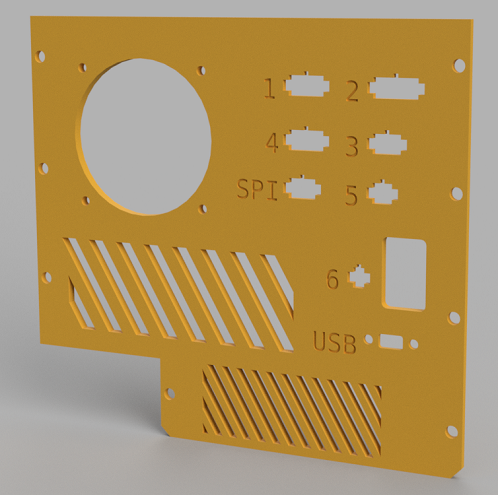

This rear panel uses Molex Micro Fit 3 connectors. In addition, it has a cutout for a 60mm fan and USB-C extension.

rear panel example

Supported Hardware

Connector or Extension	Typical Location	Notes
MicroSD panel mount extension	Front
USB B panel mount extension	Front or Rear	Right angle connector fits most boards more easily.
USB C panel mount extension	Front or Rear
JST SM panel mount connectors	Rear	2-5 pins
Molex Micro Fit 3.0 connectors	Rear	Supported up to 2-row, 16-position.
